Hybrid Water tank (Hot water tank)
Hot water Troopy water tank
Lead time: if out of stock, please allow up to 3 weeks. If you need it sooner, please check with us before ordering.
Want everything in one? Get the complete Hybrid kit: tank, utility panel, plumbing, wiring, switches, heat exchanger and 2x WEMA senders in one package.
Our game changing water tank is here!
A hot water system that doesn't compromise your interior space.
This water tank is essentially two water tanks bolted together to form what resembles our 90L water tank.
Hot water side:
The hot water tank comes with a heating element, this can be powered by 12, 24 and 48V power. Heater efficiency is improved on higher voltage systems.
The hot water system can be activated at any time, either while driving or while parked at camp. A Temperature controller with a water temperature sensor is used to control the internal temperature of the water tank this utilises a digital display for ease of use.
A plumbing kit can be purchased with this water tank. Which utilises 2 water pumps to seamlessly control the water from either the hot or the cold side of the tank. There is a water transfer valve between the water tanks, so that when you use all the water in the hot water tank you can easily re-fill through the cold water side.

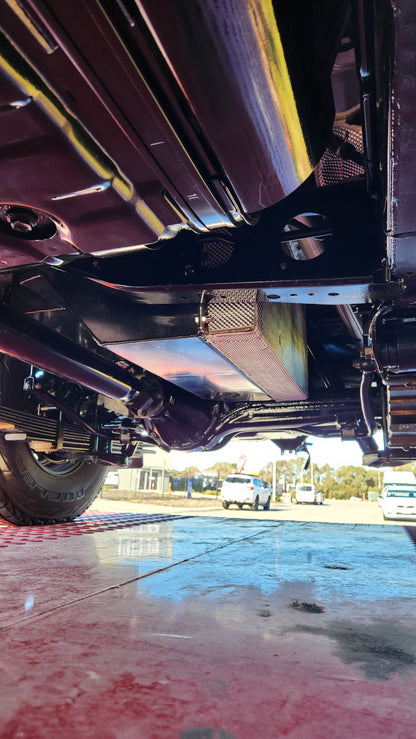

The Hot water tank is completely insulated and bolted onto the cold water tank. While driving the hot water system is positioned adjacent to the exhaust system, which provides additional heating support and efficiency.
Optional extras:

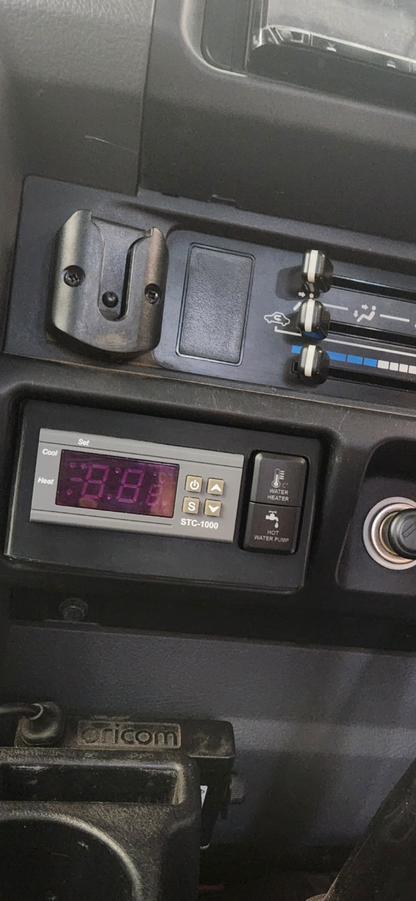

Dash mount: Replaces the ash tray. This unit mounts the temperature controller, and has provision for one Toyota plug, or twin plug. $60
HEAT EXCHANGER UPGRADE KIT:
Heat exchanger kit to pair with our hot water tank.
-This system can be integrated for people who already have the Hybrid tank setup
-The heat exchanger, heats the water to above 50°C in around 15min. It uses no 12v power.
-See the heat exchanger setup for pricing and everything that's included
Quick Facts:
-The tank fits with the 3.5” Torqit exhaust
-The cold / hot water tanks have provision for a WEMA sender fitting welded to the tank (not included – the Hybrid tank uses 2x WEMA tank level senders, one for each side)
-The hot water tank is completely insulated
-The heater draws 60A on 12V (60Ah per hour of heating)
-Bolts to the body of the Troopy, access inside the body is not required
-Combined water tank capacity is approximately 85L
-12v Heater element installed within 15L compartment
-Pump transfer between 70L - 15L compartments. (plumbing kit)
-Option to use the 15L compartment cold or hot.
Shipping: $270 to major cities in Australia.
-This water tank is shipped on a small pallet and will need to be delivered to either a Depot or business with a forklift. (deliveries will be to the closest depot to your shipping location unless specified otherwise).
PLUMBING DIAGRAM, for the pre-assembled plumbing kit, (tank to utility panel).
TEMPERATURE CONTROLLER WIRING DIAGRAM.
Complete your hybrid setup: Complete Hybrid kit · Hybrid utility panel · Hybrid plumbing kit · Heat exchanger setup · Hybrid tank wiring · Toyota dash switches · WEMA tank level senders (x2)
For orders, please send us an email.
Pairs well with
Hybrid Water tank (Hot water tank)
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Products that we recommend to pair with your Troopy water tank
We want to make your Troopy water system simple and function.
When you purchase our plumbing kit and vent utility panel with your water tank.
We plumb everything before we post it out to you. This takes the hassle out of setting up your system and saves you a heap of time and trips to Bunnings.
65L Water tank R & D
Holland Track WA:
Week of 65L Troopy tank testing!
65L Water tank R & D
Mundaring Powerlines:
The powerlines track is Perths toughest local tracks. With a huge variety of challenges, it boasts some very tough challenges. It is the perfect playground to spend a weekend lifting wheels in the Troopy!
The powerlines has a special place in our hearts as it was Kyle's Local track growing up. Only 15min drive from his home town.
Product details
Chemical cleaning, why do we do it?
Chemical cleaning stainless steel offers several benefits, making it a critical process in various industries:
- Corrosion Resistance: Chemical cleaning restores the natural corrosion resistance of stainless steel. By removing surface imperfections and enhancing the chromium/nickel content, it dramatically improves the material’s ability to resist corrosion
How easy are our tanks to install?
We have a YouTube video online and a PDF installation guide available to assist you with your water tank installation.
With basic set of tools and a Trolley Jack. You should be able to complete the installation over an hour period.
